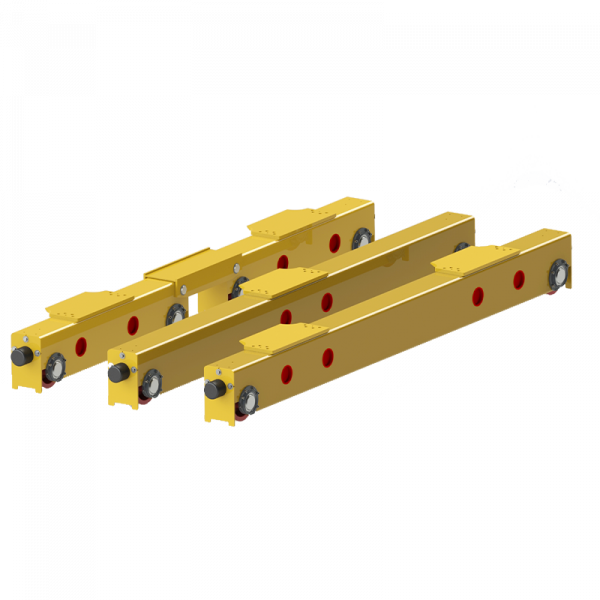

WORLDHOISTS’s end carriages feature a modular, direct-drive design, offering a compact structure and high transmission efficiency. Our crane end carriage provides a module joint design that can adapt to different building clearances and factory conditions, helping reduce required installation height and associated construction costs.
-Diverse options, including gantry crane end carriage, bridge crane end carriages, and overhead crane end carriage
-Flexible joints for smooth operation
-Compact design with integrated motor, brake, and gearbox
End Carriage Features and Benefits
WORLDHOISTS end carriages are designed to provide efficient, stable, and flexible solutions for different lifting applications, helping customers adapt to various crane configurations and working environments.
Modular and Flexible Design
The modular structure allows the crane end carriage to support quick installation and both bridge and suspended crane configurations, ensuring adaptability to different working environments.
Compact and Efficient
The compact design reduces space requirements while enhancing transmission efficiency and lowering overall energy consumption.
Smooth and Stable Operation
Articulated connections between key crane truck components help ensure smooth operation and reduce issues caused by uneven wheel pressure.
Versatile Connection Options
The crane end carriage offers multiple connection methods suitable for different factory structures, helping meet customized requirements and optimize space utilization.
High-Quality Wheel Materials
Ductile Iron Wheels (GGG70): Excellent self-lubricating properties help reduce rail wear and extend service life.
Alloy Forged Wheels (42CrMo): Our end carriages use high-strength materials designed for heavy-duty applications, supporting long-term stability and reliable operation.
Enhanced Safety
Our crane end trucks are equipped with buffers to enhance safety and reliability.
Wide Type Options
WORLDHOISTS offers a wide range of end carriage and end truck configurations, including overhead crane end carriage, gantry crane end carriage, bridge crane end carriages, and bridge crane end trucks, to meet different crane and project requirements.
End Carriage Specifications
Below are the key specifications for each crane end carriage. Our end carriages can be customized in terms of dimensions, weights, and performance data to suit specific site conditions or load requirements. If you need additional information, please contact us for detailed drawings or project-specific data.
As a specialized end truck company,WORLDHOISTS focuses on delivering lifting solutions that combine structural flexibility and operational reliability.
The end carriages support multiple connection types with the main girder including top, middle, or side mounting. This flexibility allows easy adaptation to different building structures and helps reduce the overall building height.

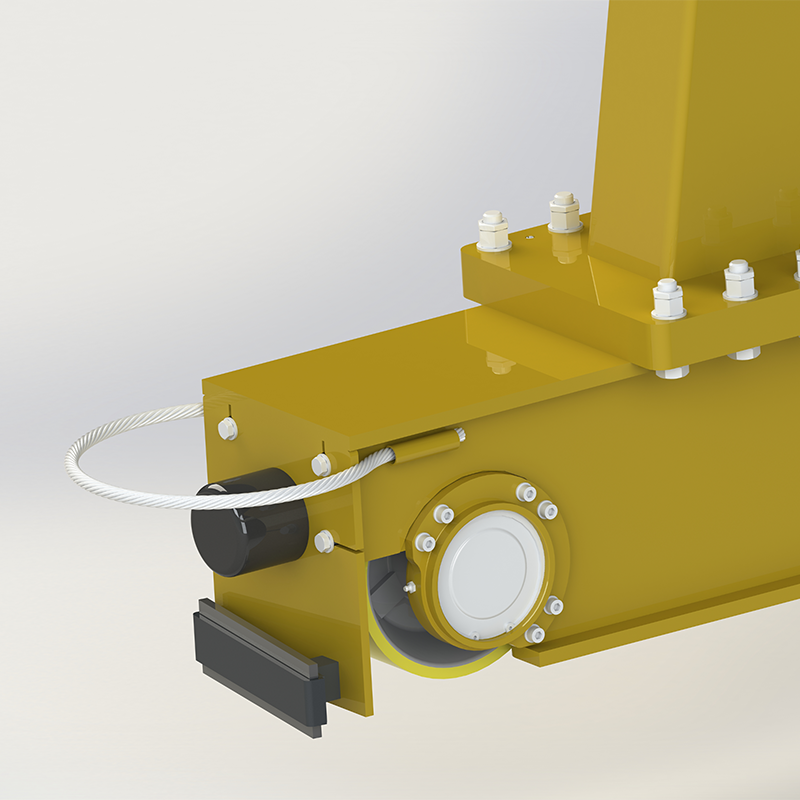

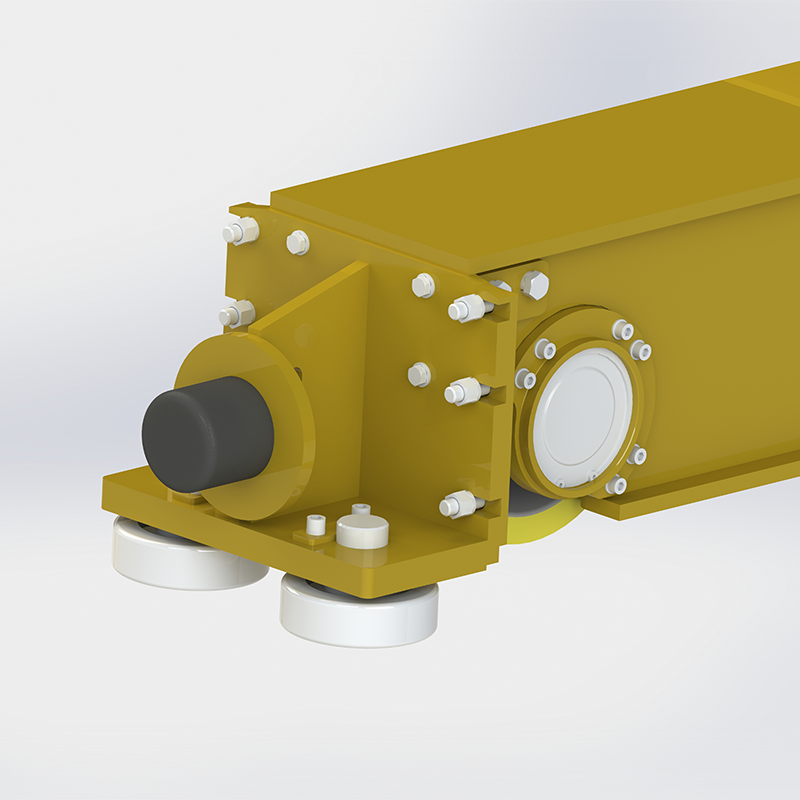

The end truck is equipped with guide rollers to correct wheel deviation and reduce rail wear. Flat wheels eliminate the need for floor grooves, enhancing ground safety and enabling the smooth movement of other workshop equipment or logistics.
WORLDHOISTS’s flexible end carriages are designed with structural adaptability to ensure even wheel load distribution during operation. This reduces stress on the runway beam and minimizes the risk of uneven support or “three-leg” situations. The flexible connection enables the system to self-adjust under varying loads, thereby improving overall stability and service life.
In contrast, traditional rigid end carriages often result in concentrated wheel pressure. This can lead to unbalanced load distribution, overloading of individual wheels, and increased wear on runway beams, especially in cases of misalignment or uneven ground.
