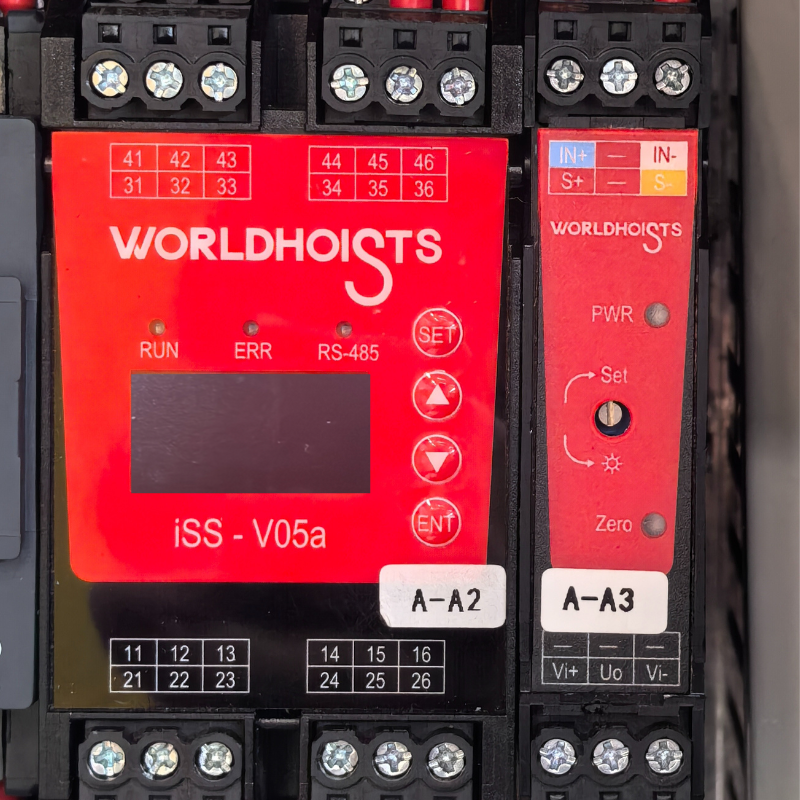

WORLDHOISTS is committed to providing customers with advanced crane safety monitoring solutions, ensuring efficient and reliable operation of equipment. Our safety monitor integrates multiple core functions and multi-layered protection mechanisms, comprehensively covering all needs from basic monitoring to advanced protection, empowering businesses to achieve intelligent management and efficient operations.
WORLDHOISTS safety monitor offers the following key features for real-time monitoring and recording of crane operating conditions, ensuring operational safety and extended equipment life:
Remaining Safe Working Period (SWP%) for Hoisting Mechanism: Precisely calculates the remaining service life of the hoisting mechanism, helping users plan maintenance in advance.
Total Hoisting Operating Hours: Records the actual running time of the equipment to facilitate evaluation of usage efficiency.
Total Overload Incidents: Tracks overload events during operation to identify potential risks promptly.
Total Hoisting Motor Start-ups: Monitors motor start frequency to predict possible failure points.
Hoisting Motor Overheating Protection and Alarm: Automatically triggers an alarm when the motor temperature is abnormal, preventing damage caused by overheating.
Brake Pad Thickness Alert: Real-time monitoring of brake pad wear ensures the braking system remains in optimal condition.
Remote Communication (Ethernet/4G Remote Access): Supports remote access to equipment data via the network, enabling intelligent management.

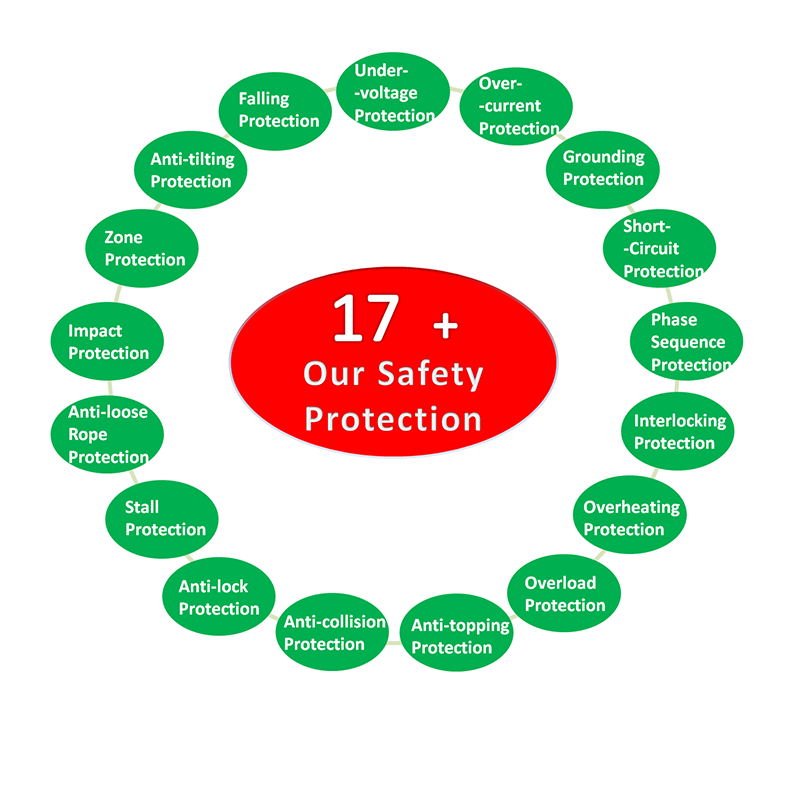

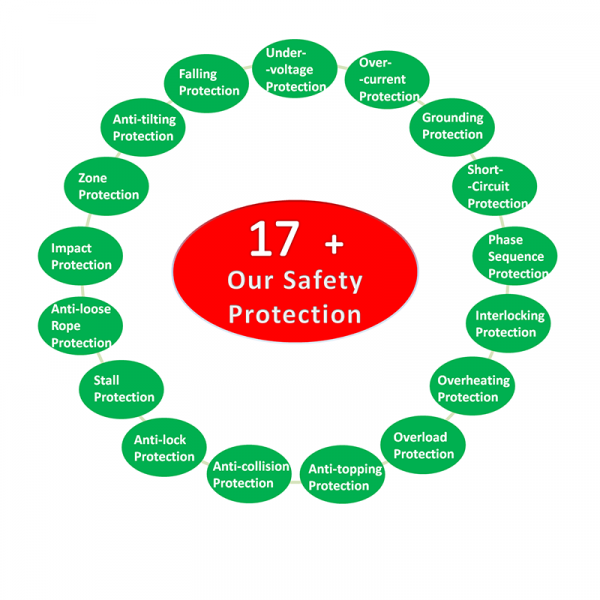

Multiple Protection Mechanisms:
WORLDHOISTS safety monitor is equipped with comprehensive protection functions to effectively prevent various unexpected incidents:
Fall Protection: Prevents accidental falling of lifted loads, safeguarding personnel and property.
Under-voltage Protection: Prevents equipment damage caused by insufficient power supply voltage.
Overcurrent Protection: Quickly cuts off the circuit during abnormal current conditions to protect the motor and other critical components.
Grounding Protection: Ensures the safety of the electrical system of the equipment.
Short-circuit Protection: Prevents fires or other hazards caused by short circuits.
Phase-loss Protection: Detects missing phases in the power supply to prevent motor damage.
Phase-error Protection: Identifies errors in the phase sequence of the power supply to prevent equipment malfunction.
Overheat Protection: Monitors temperature changes in real-time to prevent overheating of the equipment.
Overload Protection: Automatically halts operation when the load exceeds the rated value.
Limit Protection: Prevents the equipment from exceeding its designated operational range.
Anti-collision Protection: Reduces the risk of collisions between equipment or between equipment and obstacles.
Braking Protection: Ensures the braking system operates correctly to avoid unintended sliding.
Side Pull Protection: Prevents equipment damage caused by non-vertical lifting operations.
Area Protection: Restricts the equipment’s operation within specific areas to enhance job site safety.
Shock Load Prevention: Minimizes the impact on equipment due to sudden starts or stops.
Slack Rope Protection: Monitors the condition of wire ropes to prevent accidents caused by loose ropes.
Overspeed Protection: Detects and handles overspeed issues to prevent further damage.

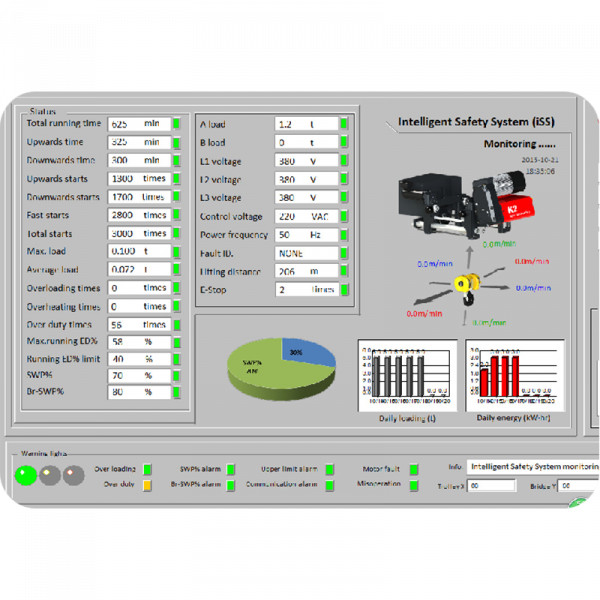

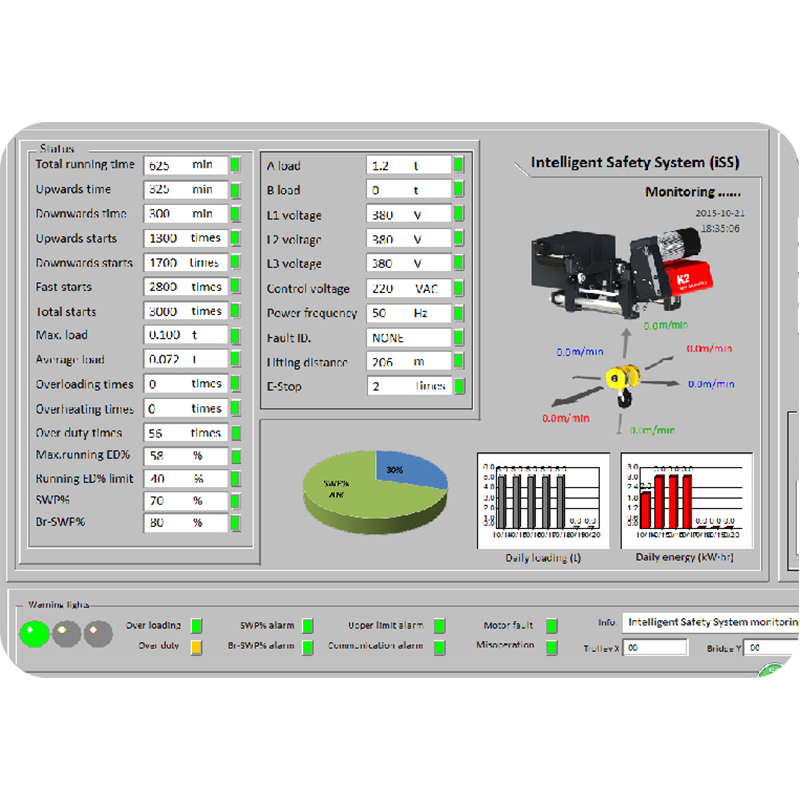

User-Friendly HMI
WORLDHOISTS safety monitor features an intuitive and easy-to-use human-machine interface, offering clear data visualization and convenient operation. Users can view equipment parameters in real time on the screen and adjust settings as needed, significantly improving operational convenience.
Smart Connectivity and Optimized Maintenance
WORLDHOISTS safety monitor supports wireless data transmission via hardware modules, allowing users to access equipment data remotely anytime, anywhere, through the network for remote monitoring and data analysis. This intelligent management approach not only simplifies the traditional annual inspection process for crane systems but also significantly enhances equipment maintenance efficiency and reduces operational costs.
