Optimizing spatial efficiency while keeping fabrication costs manageable is a primary challenge when planning modern manufacturing facilities. Installing a single girder overhead crane offers an elegant solution by providing robust lifting coverage without requiring heavy, expensive runway support structures. This streamlined configuration relies on a single structural bridge beam to traverse the work bay, reducing the total deadweight of the system. Our team at World Hoist works alongside facility planners to integrate these versatile lifting systems into various plant layouts.
Minimizing structural demands allows companies to install reliable lifting machinery in lighter, pre-engineered metal buildings. This smart design choice lowers initial construction expenses and speeds up the installation timeline on the production floor. Focusing on these highly efficient structural designs allows factories to build flexible, high-utility assembly areas that adapt to changing production needs.
Structural Anatomy and Weight Distribution
A standard single girder overhead crane uses a single horizontal bridge beam connected directly to the end trucks on both sides. The trolley and hoisting mechanism hang from the bottom flange of this main beam, traveling along its length to cover the bay width. This design keeps the overall weight of the crane low, which exerts less stress on the building columns.
Distributing the physical wheel loads evenly along the runway tracks prevents early wear on the supporting steel framework. Because the structure is lightweight, facilities can use smaller runway beams and lighter supporting pillars throughout their building designs. This balanced weight distribution makes single-beam systems highly practical for light to moderate manufacturing applications.
Comparing Top Running and Under Running Designs
Top Running Systems: The bridge end carriages ride directly on top of the runway rails, maximizing the lifting capacity of the crane. This setup is ideal for warehouses with high clearance below the roof trusses.
Under Running Systems: The end carriages hang from the bottom flange of the runway beams, which are bolted directly to the ceiling. This configuration frees up the maximum amount of floor space.
Selecting an under-running single girder crane is a highly effective way to gain overhead lifting capabilities when building columns are not available. This suspension design allows the crane to travel closer to the side walls, maximizing hook coverage across narrow work areas. Our engineering group at World Hoist assists clients in evaluating these two structural options to find the most efficient fit for their buildings.
Mechanical Elements of Single Beam Systems
The horizontal bridge beam of a single beam overhead crane is engineered to handle vertical bending forces and lateral thrusts. Standard designs use high-strength structural I-beams or box-girders to maintain rigidity over long spans without sagging. Choosing the right beam profile keeps the path of the trolley straight and smooth during rapid cross-travel movements.
End Carriage Drives: Dual-motor drive assemblies provide synchronized travel along both runway tracks to prevent the crane from skewing.
Cross-Travel Trolleys: Compact trolley frames ride along the bottom flange of the girder, carrying the lifting mechanism across the work bay.

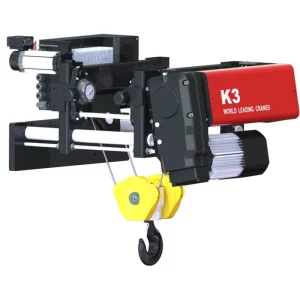

Integrating a high-performance wire rope hoist with a single beam overhead crane setup provides smooth, reliable lifting for a wide range of industrial materials. These hoist units are designed to slide effortlessly along the lower girder flange, ensuring stable positioning during complex assembly tasks.
Electrical Systems and Protective Designs
Industrial environments expose electrical components to constant vibrations, heavy dust, and high ambient temperatures. Utilizing an electric hoist with Class H insulation and IP55 protection prevents fine particles and moisture from damaging the internal motor windings. These robust electrical shields keep the motor running reliably in demanding, high-duty manufacturing spaces.
Integrating an electromagnetic disc brake ensures the hoist can hold maximum loads securely without sliding. Thermal overload and overheating sensors protect the hoist motor from burning out during busy shifts. Choosing a dust-proof and maintenance-free design reduces ongoing maintenance needs, keeping your team focused on production tasks instead of repairs.
Practical Industrial Applications and Workspace Integration
Deploying a single girder crane industrial setup works exceptionally well in assembly shops, warehousing facilities, and shipping bays. These systems provide excellent coverage for moving parts between fabrication stations without cluttering the floor with forklifts. Utilizing these cranes keeps individual work zones organized and prevents logistics bottlenecks.
For facilities with lower ceilings, opting for an under-running single girder crane maximizes the vertical hook lift height. These compact systems can span multiple assembly lines, transferring heavy loads seamlessly across wide workshops. Our technical advisors at World Hoist provide detailed on-site consultations to help plants choose the most effective crane layout for their daily operations.
Long-Term Maintenance and Durability
Keeping your lifting equipment in stable operating condition requires simple, systematic maintenance procedures. Single-beam systems have fewer moving parts than double-girder designs, which naturally reduces the time needed for routine inspections. Checking the wear on the trolley wheels and verifying the brake adjustments keeps the machinery running safely.
Upgrading your system with a heavy-duty motor featuring a 60% ED rating ensures the hoist handles repetitive lifting tasks without overheating. This high duty-cycle capability allows the equipment to withstand busy production schedules year after year. Investing in durable, high-efficiency components helps facilities minimize unexpected downtime and lower their overall operating costs.
Conclusion
Choosing the right structural layout is the first step toward building a highly productive, cost-effective manufacturing environment. A lightweight single girder overhead crane delivers excellent hook coverage while keeping structural loads on your building columns to a minimum.
At our company, we are dedicated to providing reliable wire rope hoist units and versatile crane kits to support your facility goals. By matching your workspace layout to an under-running single girder crane or a standard single beam overhead crane, you can secure a safe, efficient, and highly practical operational future.
