Designing a functional manufacturing facility requires careful consideration of three-dimensional spatial limits. Among these vertical variables, establishing the overhead crane lift height dictates how tall the physical facility walls must be built. If the vertical clearances are miscalculated, the hook might not lift cargo high enough to clear floor obstacles. Our team at World Hoist works to clarify these mathematical relationships, allowing facilities to plan their building dimensions with confidence.
Failing to account for structural clearances can lead to expensive modifications during the construction phase. By calculating the physical boundaries early, engineers can minimize building height while maintaining full lifting capabilities. We focus on breaking down these technical formulas to make industrial planning straightforward and precise for partners globally.
Determining Vertical Boundaries and Clearance Limits
Available vertical clearance is the distance between the finished floor and the lowest overhead obstruction. This vertical boundary must accommodate the runway rails, the bridge girder, and the physical height of the trolley. Measuring these physical components correctly ensures that the machinery operates smoothly without striking overhead light fixtures or roof trusses.
A common mistake in industrial planning is assuming that the beam height equals the actual lifting capability. In reality, the physical body of the hoist and the hook assembly take up several feet of vertical space directly below the beam. Understanding these physical limits is essential for keeping the workspace safe and avoiding costly structural interference during high lifts.
Mathematical Formulas for Vertical Planning
Hook Path Coverage: Calculating the total distance the hook must travel from its lowest point below ground to its highest elevated point.
Building Clearance Buffer: Factoring in a mandatory safety clearance between the top of the crane and the roof support beams.
Calculating these variables is essential to complete a precise crane lifting height calculation for your facility layout. This formula ensures that the hook can reach deep assembly pits while still lifting parts high enough to clear high machinery. Our team at World Hoist helps draft these dimensional models to protect your project from early layout mistakes.
Defining the Upper Hook Elevation Limit
The physical hoist lift height refers to the maximum vertical distance the hook can travel between its lowest and highest limits. This distance is determined by the length of the wire rope wound around the drum. Selecting a hoist with insufficient rope length limits your ability to reach basement levels or deep service trenches safely.
Using a low-headroom hoist design allows the hook to sit higher up between the bridge girders. This specialized design increases the usable vertical travel distance without requiring you to raise the roof of the entire building. Matching the rope capacity to the physical building design prevents operational limits from hindering daily material transport.
Managing the Center of Gravity During Lifts
Operating a heavy-duty system safely depends on keeping the hook positioned directly above the center of gravity of the load. Measuring the crane hook height relative to the top of the cargo helps rigging crews choose the correct sling lengths. Correct hook positioning prevents dangerous swinging motions when the load is first raised off the ground.
If the hook height is restricted, rigging crews are forced to use shorter slings, which increases the tension on the rigging. Understanding these physical lifting dynamics helps operators maintain safe load control throughout the lifting cycle. Our team focuses on sharing these safety principles to keep facility operations running smoothly.
Utilizing Advanced Design Software Solutions
Planning these complex vertical dimensions manually can be a time-consuming process prone to mathematical errors. To solve this, we utilize King, our state-of-the-art crane calculation software built on a robust VB platform. Adhering to strict ISO and FEM standards, King allows engineering teams to complete a comprehensive crane lifting height calculation in five minutes.

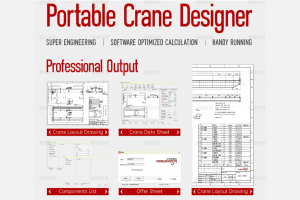

This program generates precise preliminary drawings, wheel load data, and main girder specifications to simplify your project planning. Utilizing advanced intelligent optimization algorithms, King helps choose the most compatible crane attachments for sale based on your specific spatial inputs. Our partners use this software to streamline their engineering designs and speed up project approvals.
Maximizing Vertical Efficiency with Low Headroom
Using standard hoist configurations in low-ceiling buildings often leaves very little clearance for moving bulky equipment. Upgrading to a low-headroom wire rope hoist helps maximize crane hook height in restricted workspaces. This compact hoist design allows factories to handle large loads safely without rebuilding their existing structural frames.
Our specialized King software helps engineering teams quickly analyze these low-headroom configurations to find the most efficient layout. Our software, sometimes referred to as the cloud king version by our technical partners, simplifies the selection of compact hoist components. These digital design tools ensure that your overhead crane lift height meets your material handling needs perfectly.
Practical Ground and Pit Considerations
Below-Grade Reaching: Verifying that the wire rope length allows the hook to reach the bottom of manufacturing or maintenance pits.
Sling Clearance Needs: Ensuring there is enough space between the hook and the load to attach multi-leg rigging chains safely.
Evaluating these ground-level requirements prevents operators from running out of rope during deep lifting tasks. It also ensures the hook raises high enough to move cargo over tall factory equipment safely. Our team at World Hoist assists with these physical assessments to ensure your hoist lift height matches your daily workshop demands.
Conclusion
Determining the exact vertical dimensions of your lifting machinery is critical for running a safe and productive facility. Accurate physical calculations prevent structural interference and ensure your overhead crane lift height matches your daily operational needs.
At World Hoist, we focus on providing advanced design software like King and highly efficient hoist components to streamline your planning. By utilizing precise calculations and choosing the right crane hook height, industrial facilities can secure a highly productive, safe, and space-efficient operational environment.
